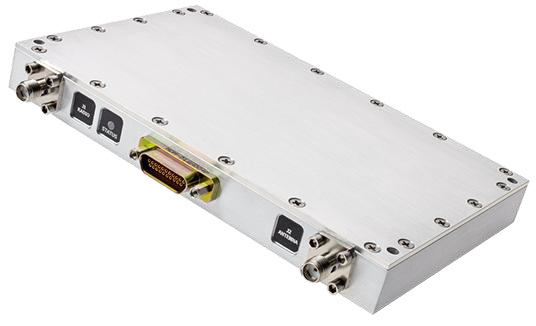

TTRM4410-D02
5000-5300 MHz, 32 W SISO Bi-Directional Amplifier
The TTRM4410 D02 SISO Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 5000 to 5300 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +30 VDC and a saturated RF output power of +45 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
- Manual Tx/Rx Switching
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM4410-D02 | 5000 | 5300 | 29.5 | 12-30 | 3-4 | 13.5 | 5000 | 5300 | 45 | 5.3 × 3.25 × 0.6 |
