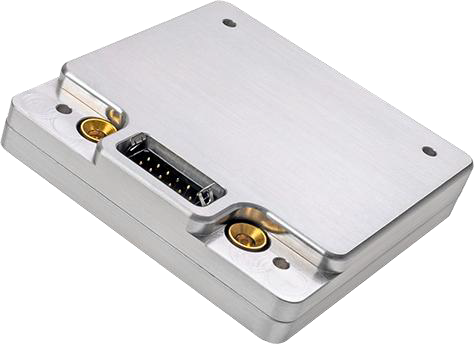

TTRM4002-D02
4400-5000 MHz, 10 W SISO Bi-Directional Amplifier
The TTRM4002 D02 SISO Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 4400 to 5000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +9 to +36 VDC and a saturated RF output power of +40 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
- Tx/Rx Status Monitor
- Manual Tx/Rx Switching
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM4002-D02 | 4400 | 5000 | 27 | 9-36 | 3 | 12 | 4400 | 5000 | 40 | 2.3 × 2.3 × 0.45 |
