TTRM3000

2200-2507 MHz 20 W Amplifier

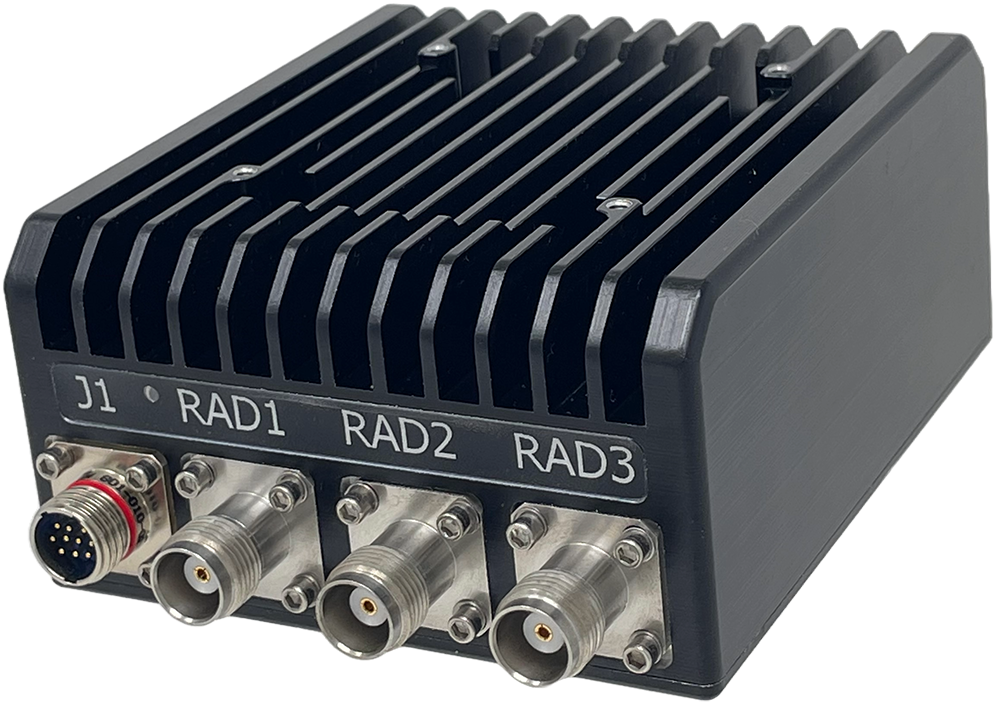

The TTRM3000 Bi-Directional Amplifier from Triad RF Systems has been designed for use specifically with the Persistent Systems MPU5 radio. Designed around a compact form factor, this 3-Channel MIMO BDA offers a maximum output power of 20 Watts per channel, for a total of 60 Watts. Its high output power and small size make it the perfect addition to manpack systems where performance and portability is essential.

2200-2700 MHz 20 W Amplifier

Buying Options


Choose Switching Type

x
BDAs can be equipped to switch from Tx / Rx in two ways: A discrete 3.3 and 5V compatible TTL line (manual) or through detection of the RF signal on the BDA’s input (automatic).
    Automatic
    Manual

Cooling Features

x
Most units are available with a Triad-supplied heatsink and / or heatsink-fan assembly, if heatsinking is not available in your system. Consult the specification sheet for details on the various cooling options’ size / shape.
    None

Optional Cable

x
A pre-wired power supply - control cable to interface with the unit is available for purchase. Consult the specification sheet for details.
  •  Include Cable
  •  Exclude Cable
QTY.
Request a Quote
Lead Time: Call for Quote
Call for Price
Quantity
Unit Price
5 - 9
Request a Quote
10+
Request a Quote
Datasheet
3d Model
Test Data

Features

  • Over / Under / Reverse Voltage Protection
  • Temp. Monitor Output
  • Auto Tx/Rx Switching (RF Detect)
  • Forward Power Measurement

Applications

  • Simple CW to Highly Modulated Signals
  • Commercial / Military Radio Systems
  • Software Defined Radios
  • General Purpose RF Amplification
Model Frequency Low
(MHz)		Frequency High
(MHz)		Tx Gain
(dB)		Supply Voltage
(Vdc)		Rx Noise Figure
(dB)		Rx Gain
(dB)		Output FreqLo
(MHz)		Output FreqHi
(MHz)		Psat (Typ)Size
(in)
TTRM3000 220025072610-282.11522002507435.6 x 3.25 x 1.5
