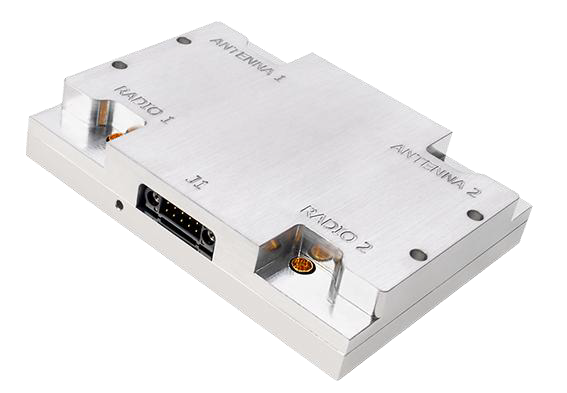

TTRM2005D-D02
2200 - 2500 MHz 16 W Manual-Switch RF Bi-Directional Amplifier
The TTRM2005D D02 2x2 Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 2200 to 2500 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +32 VDC and a saturated RF output power of +42 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
- Manual Tx/Rx Switching
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
- Military MANET
- UAS, UGV, and USV Video/Data Links
- Point-to-Point and Mesh Networking
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM2005D-D02 | 2200 | 2500 | 25 | 12-32 | 1.8 | 13 | 2200 | 2500 | 42 | 3.4 x 2.6 x 0.65 |
