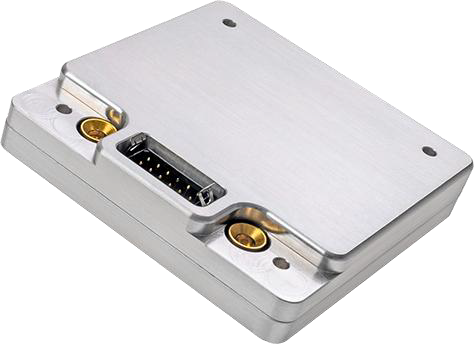

TTRM2002-D02
2200-2500 MHz, 10 W SISO Bi-Directional Amplifier
The TTRM2002D02 SISO Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 2200 to 2500 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +30 VDC and a saturated RF output power of +40 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Tx/Rx Status Monitor
- Amplifier Status Output
- Manual Tx/Rx Switching
- Under Voltage Protection
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
- Military MANET
- UAS, UGV, and USV Video/Data Links
- Point-to-Point and Mesh Networking
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM2002-D02 | 2200 | 2500 | 27 | 10-30 | 2 | 16.5 | 2200 | 2500 | 40 | 2.3 × 2.3 × 0.45 |
Triad Introduces New Low-SWaP S-Band Bi-Directional Amplifier
Triad introduces the TTRM2002, an S-Band Bi-Directional power amplifier that operates from 2200 to 2500 MHz, and offers up to 10 Watts of output power.
