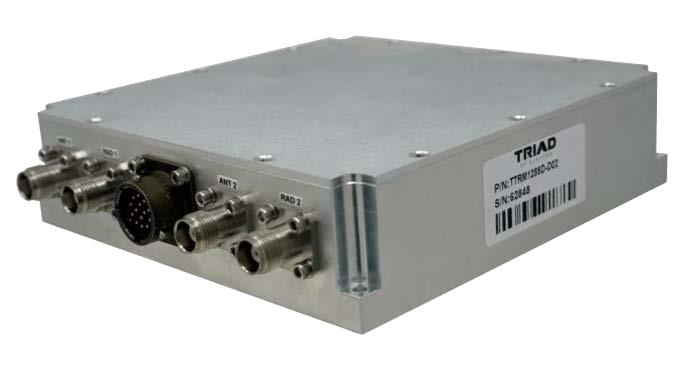

TTRM1288D-D02
2x2 Bi-Directional Amp
The TTRM1288DD02 2x2 Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 600 to 700 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +22 to +30 VDC and a saturated RF output power of +47 dBm. With the capability of supporting any signal type and modulation format in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Over / Under / Reverse Voltage Protection
- Over-Temperature Protection
- Manual Tx/Rx Switching
- Amplifier Status Output
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Vehicle Systems
- Military MANET
- Fixed Site Infrastructure
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM1288D-D02 | 600 | 700 | 34 | 22-30 | 3 | 12 | 600 | 700 | 47 | 6 x 6 x 1.59 |
