TTRM1285D-D03
2100-2300 MHz, 50 W 2x2 Bi-Directional Amplifier

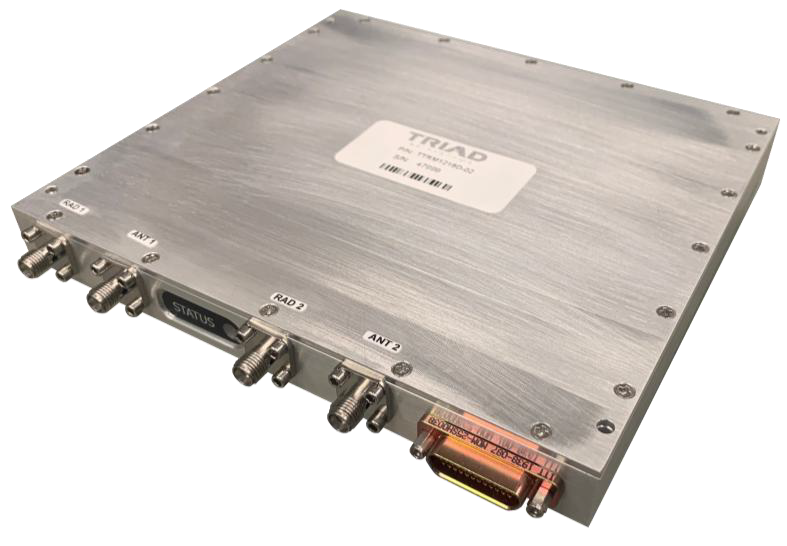

The TTRM1285DD03 2x2 Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 2100 to 2300 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +12 to +32 VDC and a saturated RF output power of +47 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Over / Under / Reverse Voltage Protection
- Temperature Monitor Output
- Over-Temperature Protection
- Manual Tx/Rx Switching
- Amplifier Status Output
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Vehicle Systems
- Aircraft Systems
- Fixed Site Infrastructure
- Military MANET
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM1285D-D03 | 2100 | 2300 | 32 | 12-32 | 3.5 | 5 | 2100 | 2300 | 47 | 5.63 × 6.13 × 0.67 |
