TTRM1126D-D02
1800-2200 MHz 20 W 2x2 Bi-Directional Amplifier

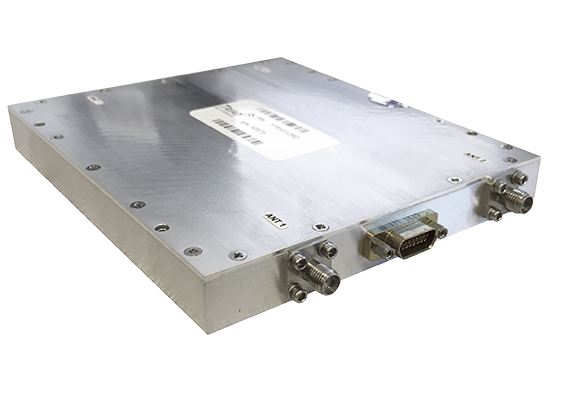

The TTRM1126D D02 2x2 Bi Directional Amplifier is a class AB GaN module with an operating frequency range of 1800 to 2200 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +27 to +30 VDC and a saturated RF output power of +43 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
- Manual Tx/Rx Switching
- Under Voltage Protection
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Long Distance High Data Rate ISR Links
- Vehicle Systems
- Fixed Site Infrastructure
- UAS, UGV, and USV Video/Data Links
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM1126D-D02 | 1800 | 2200 | 27 | 27-30 | 3 | 12 | 1800 | 2200 | 43 | 5.1 x 4.4 x 0.6 |
