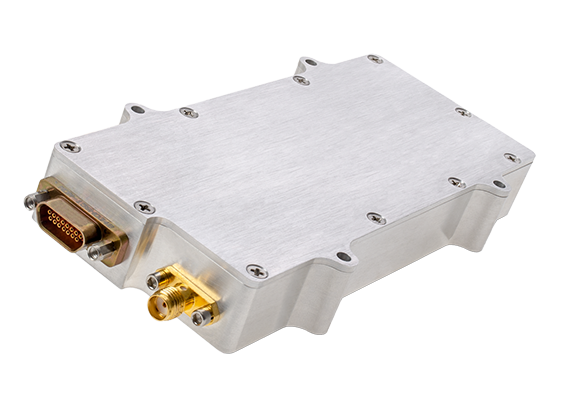

TTRM1117-D02
1250 - 1350 MHz SISO Bi-Directional Amplifier
The TTRM1117-D02 SISO Bi-Directional Amplifier is a class AB GaN module with an operating frequency range of 1250 to 1350 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +14 VDC and a saturated RF output power of +42 dBm. With the capability of supporting any signal type and modulation format, all in a low-SWaP package, this unit is ideal for applications where high power-density, efficiency, and linearity are essential.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Under Voltage Protection
- Tx Gain Control
- RSSI Indicator
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
- Military MANET
- Long Distance High Data Rate ISR Links
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM1117-D02 | 1250 | 1350 | 23 | 10-14 | 3.5 | 4 | 1250 | 1350 | 42 | 5.61 x 2.53 x 0.7 |
