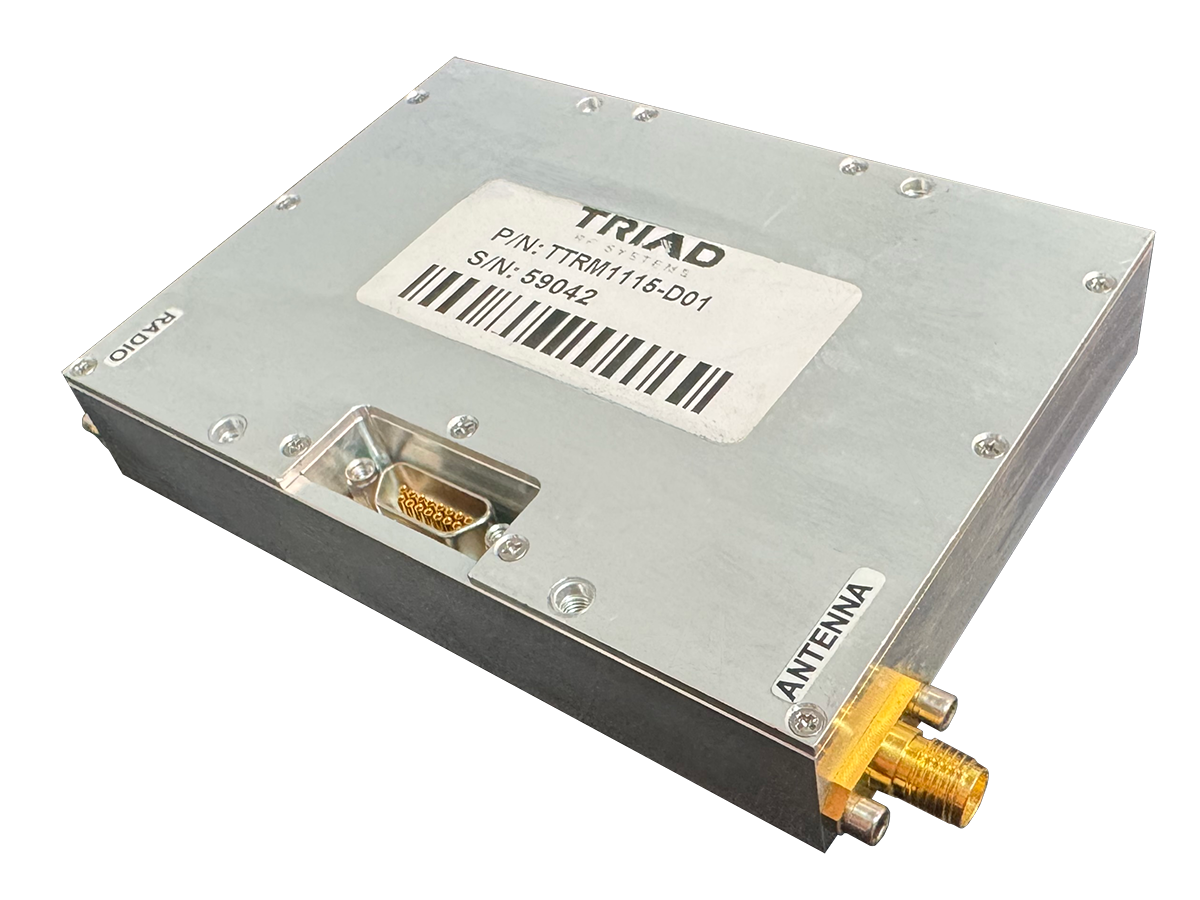

TTRM1115-D01
2400-2500 MHz SISO Bi-Directional Amplifier
The TTRM1115-D01 SISO Bi-Directional Amplifier is a class AB GaN module with an operating frequency range of 2400 to 2500 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +14 VDC and a saturated RF output power of +43 dBm. With the capability of supporting any signal type and modulation format all in a low-SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Automatic Tx/Rx Switching
- Tx Gain Control
- RSSI Indicator
- Amplifier Bypass
Applications
- Unmanned Systems
- Military or Commercial Radio Systems
- Aircraft Systems
- Military MANET
- Long Distance High Data Rate ISR Links
| Model | Frequency Low (MHz) | Frequency High (MHz) | Tx Gain (dB) | Supply Voltage (Vdc) | Rx Noise Figure (dB) | Rx Gain (dB) | Output FreqLo (MHz) | Output FreqHi (MHz) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| TTRM1115-D01 | 2400 | 2500 | 23 | 10-14 | 1.5 | 13 | 2400 | 2500 | 43 | 5.91 x 2.76 x 0.71 |
