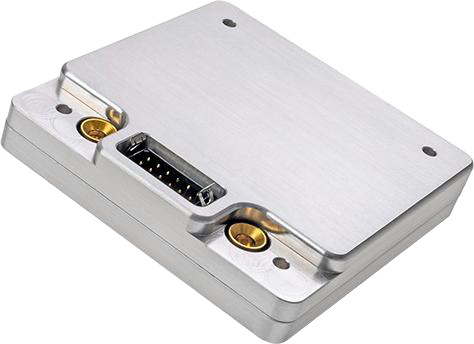

TA4302
5000-6000 MHz, 10 W SISO Power Amplifier
The TA4302 SISO Power Amplifier is a class AB GaN module with an operating frequency range of 5000 to 6000 MHz. Designed for both military and commercial applications, this amplifier features an input voltage range of +10 to +32 VDC and a saturated RF output power of +40 dBm. With the capability of supporting any signal type and modulation format all in a low SWaP package, this unit is ideal for applications where high power density, efficiency, and linearity are key.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Under Voltage Protection
- Temperature Monitor Output
- Over-Temperature Protection
- Amplifier Status Output
Applications
- Military or Commercial Radio Systems
- Unmanned Systems
- Vehicle Systems
- Aircraft Systems
- Fixed Site Infrastructure
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA4302 | 5000 | 6000 | 39 | 27 | 10-32 | 40 | 2.3 x 2.3 x 0.45 |
