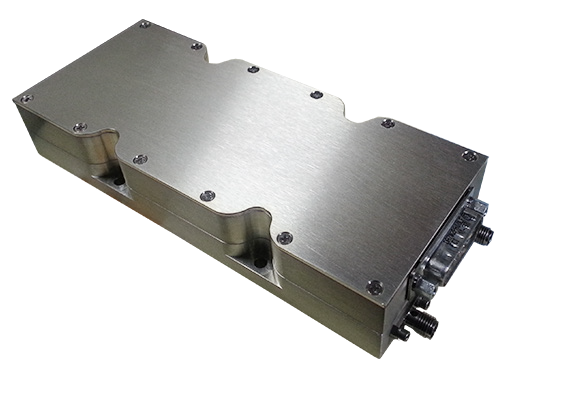

TA1165
5500-8500 MHz, 20 W Power Amplifier
This class AB GaN module is designed, and proven to be reliable, for Low Earth Orbit satellite applications. The TA1165 is capable of supporting any signal type and modulation format, including but not limited to DVB, DVB-DSNG, and DVB-S2. This unit is efficient, linear and lightweight. This unit has extensive flight heritage in low earth orbit.
Lead Time: Call for Quote
Contact Triad RF sales for thermal management options and quantity pricing information
Features
- Wide DC Voltage Input
- Over/Under/Reverse Voltage Protection
- Temperature Monitor Output Pin
Applications
- Low Earth Orbit Downlink/Interlink Amplification
- DVB (and variants) Data Transmission
| Model | Frequency Low (MHz) | Frequency High (MHz) | P1dB dBm (Typ) | Tx Gain (dB) | Supply Voltage (Vdc) | Psat (Typ) | Size (in) |
|---|---|---|---|---|---|---|---|
| TA1165 | 5500 | 8500 | 43 | 52.5 | 28 | 4.5 | 6 x 2.5 x 1.06 |
