Triad RF Systems

TA1049

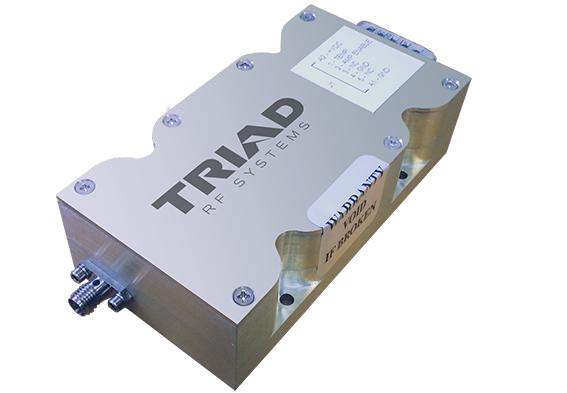

700-6000 MHz 10 W Power Amplifier

The TA1049 PA module has been engineered to support any signal type, from simple CW/FM signals to complex, highly modulated carriers such as 64 and 256QAM. This module uses the latest GaN transistor technology to achieve highly linear power with low distortion, or peak power at high efficiencies to meet any radio system's requirements. Triad employs the latest RF simulation and design methods to offer products with the lowest size, weight, and DC power consumption in the industry.

700-6000 MHz 10 W Power Amplifier

Options


Cooling Features

x
Most units are available with a Triad-supplied heatsink and / or heatsink-fan assembly, if heatsinking is not available in your system. Consult the specification sheet for details on the various cooling options’ size / shape.
    None
    Heatsink
    Heatsink & Fan

Optional Cable

x
A pre-wired power supply - control cable to interface with the unit is available for purchase. Consult the specification sheet for details.
  •  Include Cable
  •  Exclude Cable
Lead Time: Call for Quote
Call for Price
Quantity
Unit Price
5 - 9
Request a Quote
10+
Request a Quote

Features

  • Over / Under / Reverse Voltage Protection
  • High Speed On/Off Control
  • Temperature Output
  • Over Temp Shutdown
  • Optional Heatsink
  • Versatile DC Supply (VDS) +9V to +36V

Applications

  • Simple CW to Highly Modulated Signals
  • Commercial / Military Radio Systems
  • Software Defined Radios
  • General Purpose RF Amplification
Model Frequency Low
(MHz)
Frequency High
(MHz)
P1dB dBm (Typ)Tx Gain
(dB)
Supply Voltage
(Vdc)
Psat (Typ)Size
(in)
TA1049 7006000439-36403.75 x 2 x 1.063
